Four NVMe bays

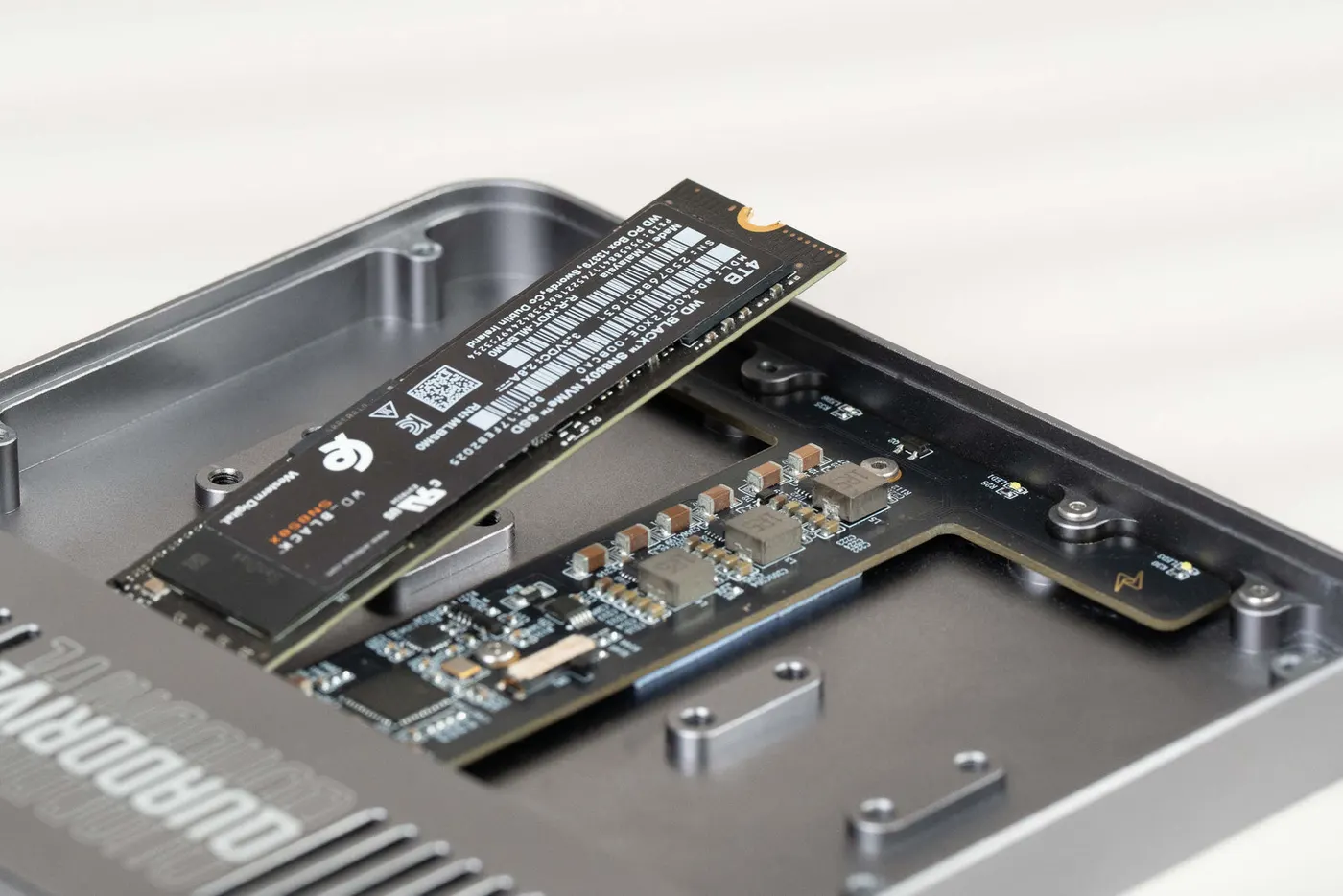

Start with one SSD and add up to four, in 2230, 2242 or 2280 size. Use each one as its own volume, or combine them with JBOD or software RAID managed by your operating system.
QuadDrive

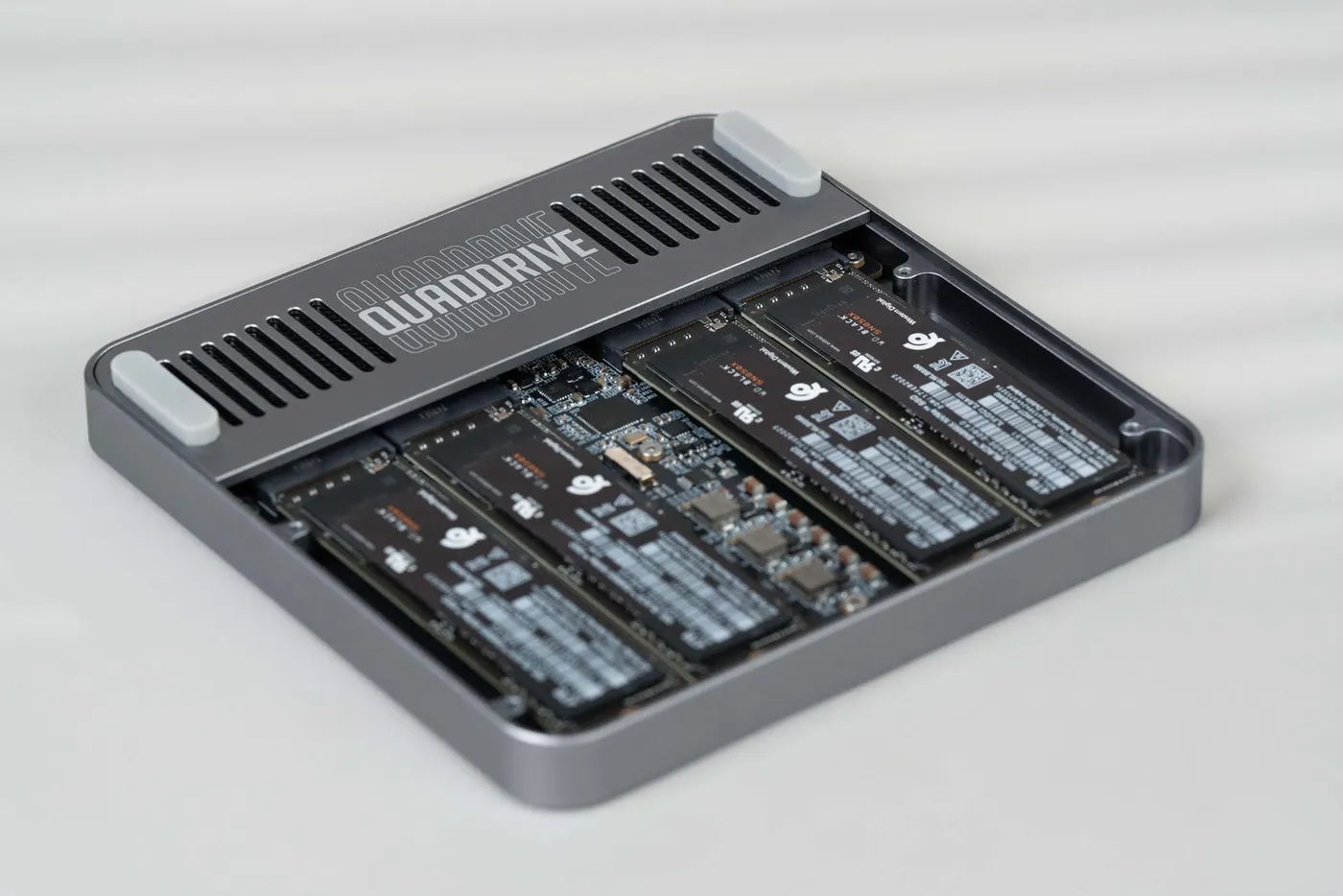

QuadDrive is a four-bay M.2 NVMe SSD enclosure for USB4 and Thunderbolt hosts. Start with one SSD and add more as your projects grow. Use each drive as its own volume, or combine them with JBOD or software RAID.
- M.2 NVMe
- 4bays
- Maximum capacity
- 32TB
- Multi-drive (rated)
- 3,200MB/s
- PD adapter included
- 65W
Specifications
| Host connection | USB4, Thunderbolt 3 / 4. Also works with USB 3.x / 2.0 at that link's speed. |
| Drive bays | 4 × M.2 NVMe, sizes 2230 / 2242 / 2280 |
| Controller | ASMedia ASM2464PDX, PCIe 4.0 x1 per bay |
| Maximum capacity | 32 TB (4 × 8 TB) |
| Rated speed | About 1,600 MB/s for a single drive, about 3,200 MB/s across several drives |
| Volumes | Independent volumes, JBOD, or OS-managed software RAID (0 / 1 / 5 / 6 / 10, depending on the OS) |
| Cooling | Aluminum enclosure, vented top cover, adaptive fan (configurable) |
| Power | Separate USB-C PD input, 65 W USB-C PD adapter included |
| Dimensions | 127 × 127 × 12.5 mm |
| In the box | QuadDrive, 0.7 m USB4 / Thunderbolt cable, 65 W USB-C PD adapter |
SSDs are not included
Choose your own SSD brand and capacity. Final performance depends on the host, the SSDs and the cable.
Highlights
Built to stay cool
An aluminum enclosure, vented top cover and adaptive fan keep drives cool under sustained load. You can also set your own fan curve.
